inTOUCH101 and inTOUCH156 On-Screen Display (OSD)

The inTOUCH products illustrated above includes an on-screen display (OSD) enabling adjustment of the screen settings, select video input and display screen information. Note that the Buttons above are small and you may need something like a paper clip to reach the Buttons through the chassis holes.

VOLUME UP/DOWN OSD
The inTOUCH product is equipped with a 3.5 mm audio jack, to adjust the audio output volume up or down press Button 1 (Volume down) or Button 3 (Volume down).

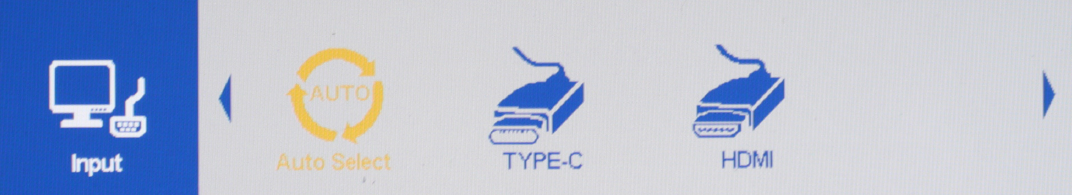

INPUT SELECTION OSD
The inTOUCH product is equipped with a USB TYPE-C and HDMI video input, the default setting is set to automatically detect the connected video input. It is possible to manually select the USB TYPE-C or the HDMI input. Open the INPUT OSD but pressing Button 4 then use Button 1 to move left or Button 3 to move right in the menu, use Button 2 to activate the selected option.

MAIN SETTINGS OSD
The inTOUCH product has an extensive main settings menu, press Button 2 to open this menu, use Button 1 to move left or Button 3 to move right in the menu, use Button 2 to activate the selected option.

The main menu has 2 levels, the top level has sections for Picture, Audio, Color, Advance, Other and Information. Use Button 1 and Button 3 to navigate, use Button 2 to choose the selected option.

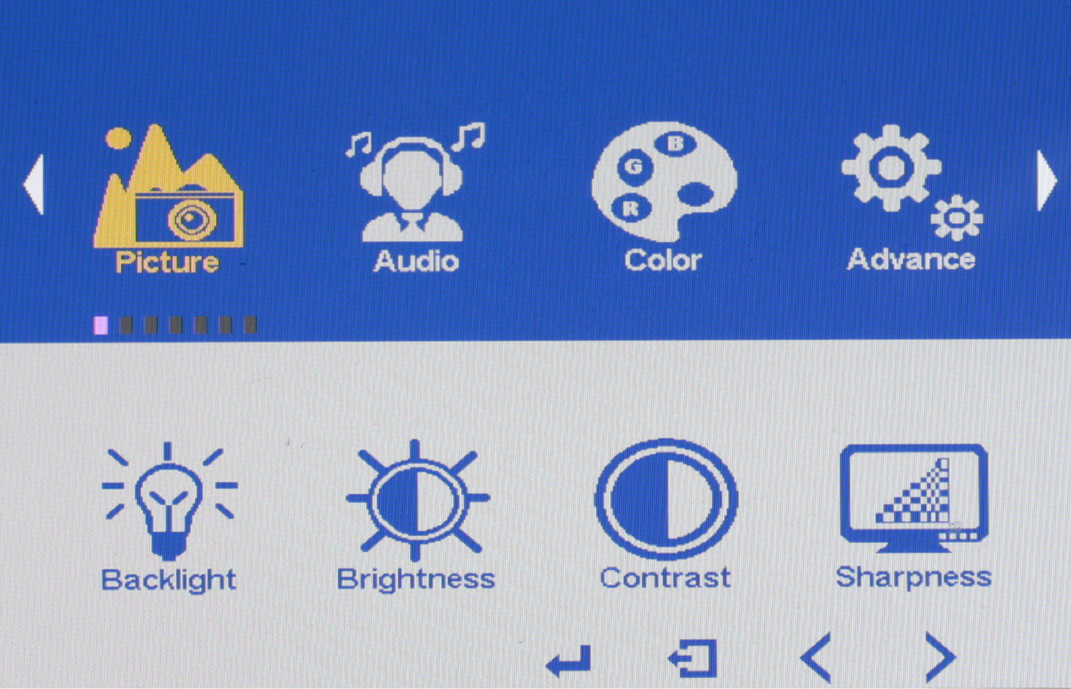

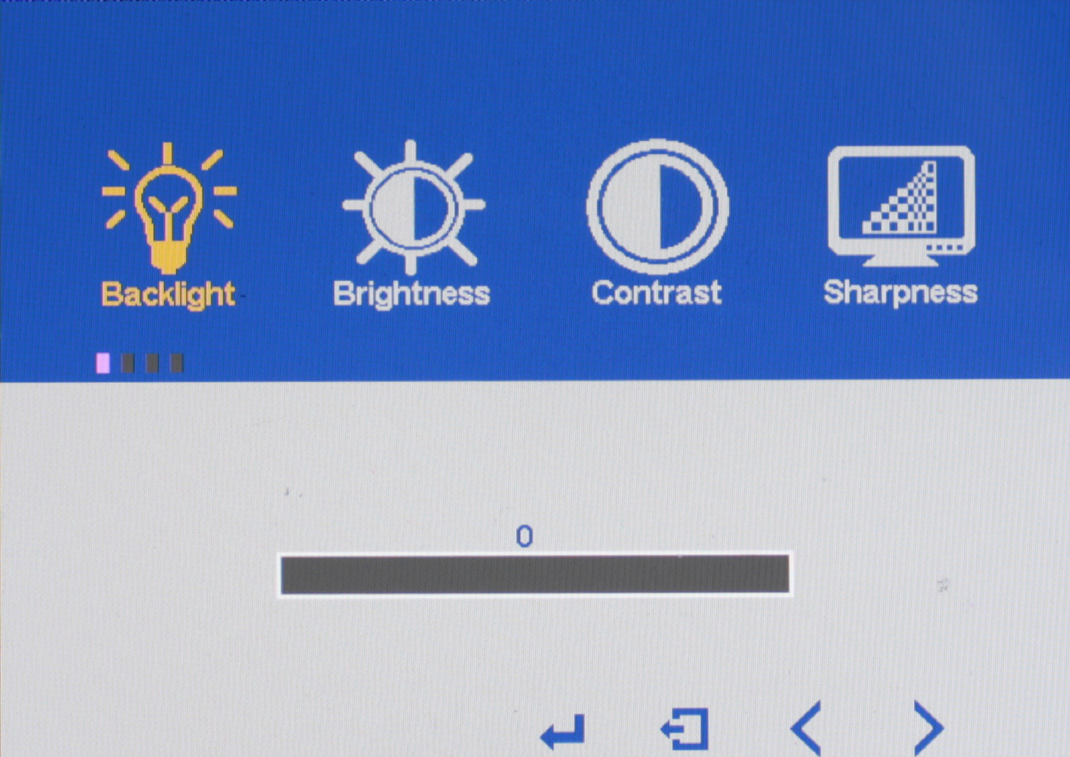

When a selection is activated, like Picture in the image above, now you can select the sub menu, in this example Picture -> Backlight. When you select the Backlight you will be able to adjust the value for the specific option. Adjust the value for the option with Button 1 and Button 3 as before, when you are satisfied use Button 2 to set the selected value. See picture below.

OVERVIEW OF ALL MAIN SETTINGS OSD CATEGORIES
Below is a listing of all the main settings categories.

PICTURE OPTIONS

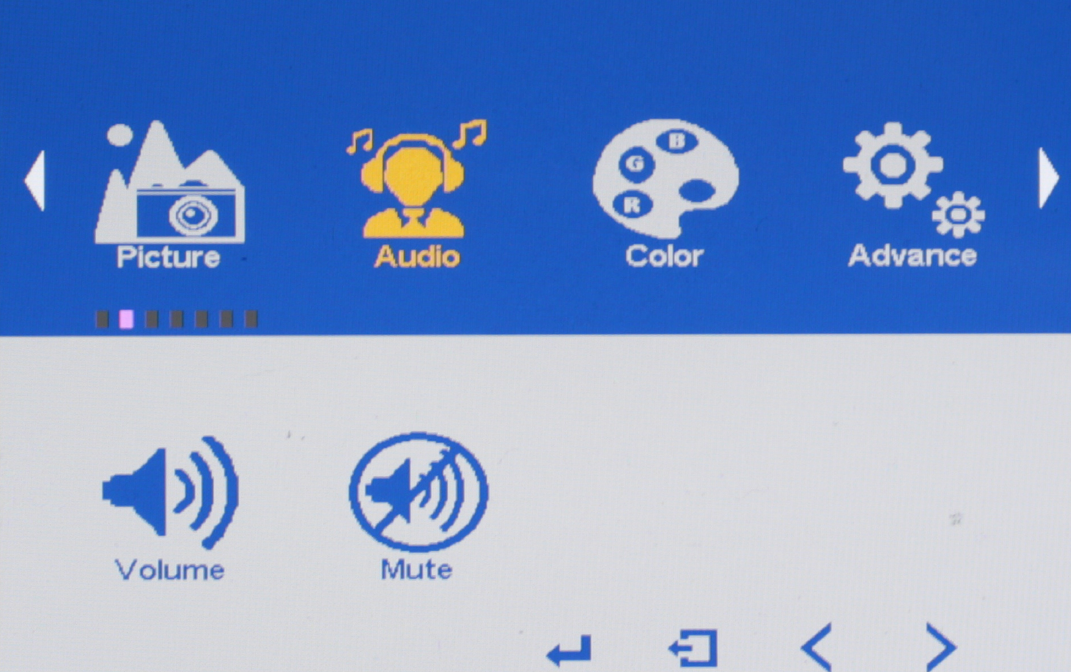

AUDIO OPTIONS

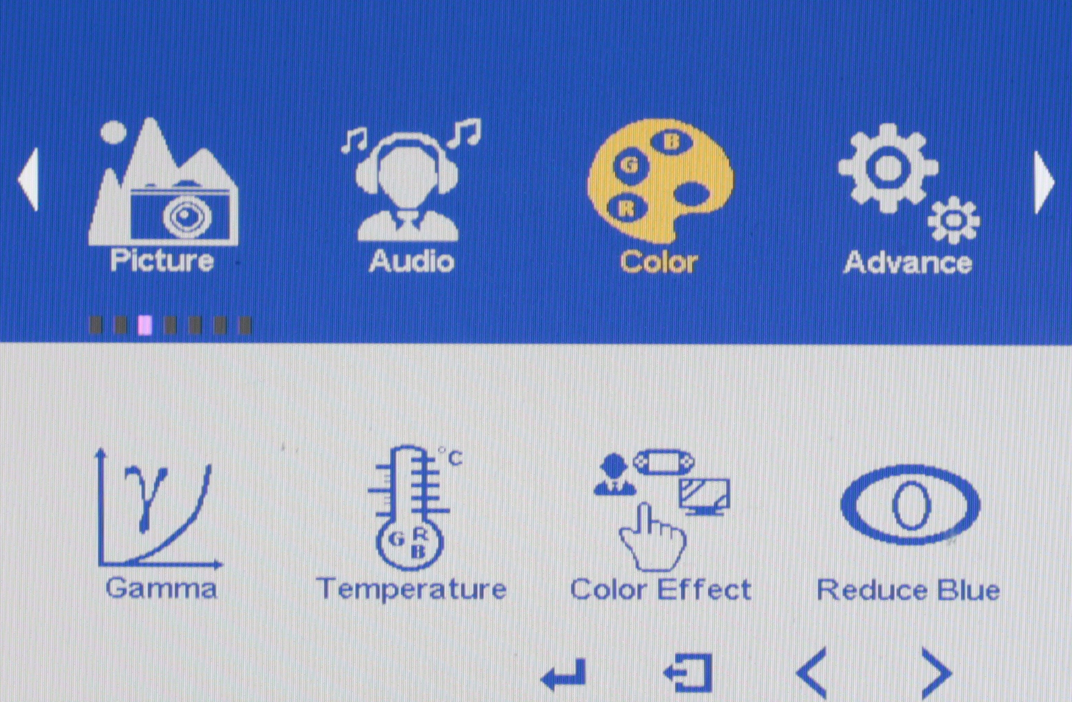

COLOR OPTIONS

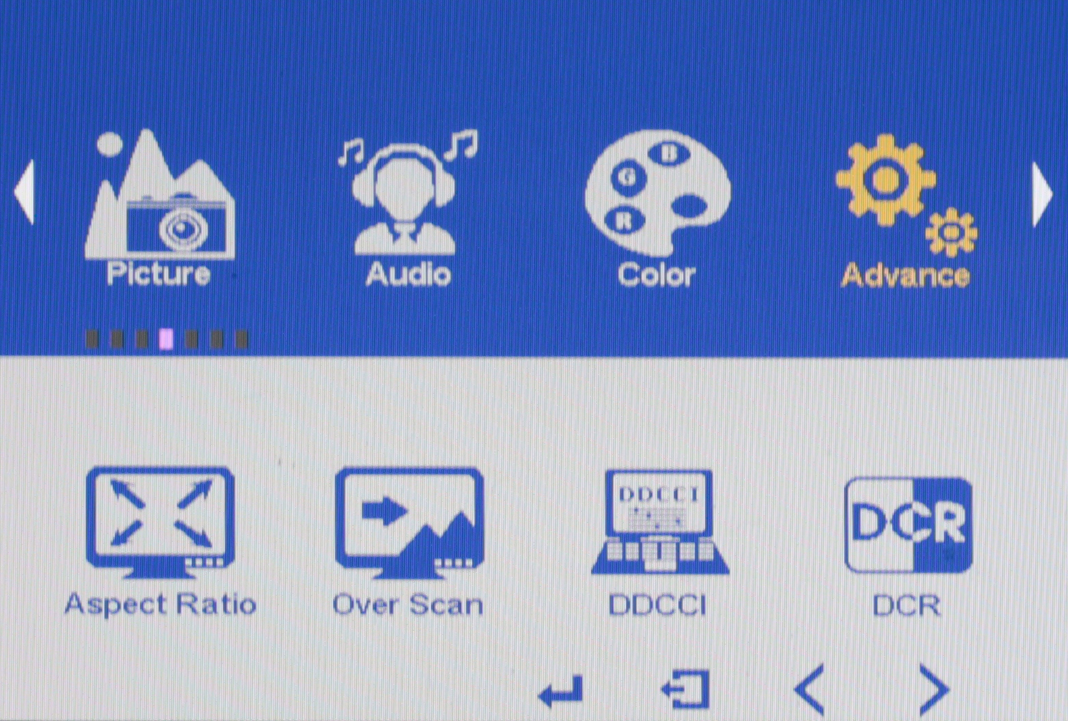

ADVANCE OPTIONS

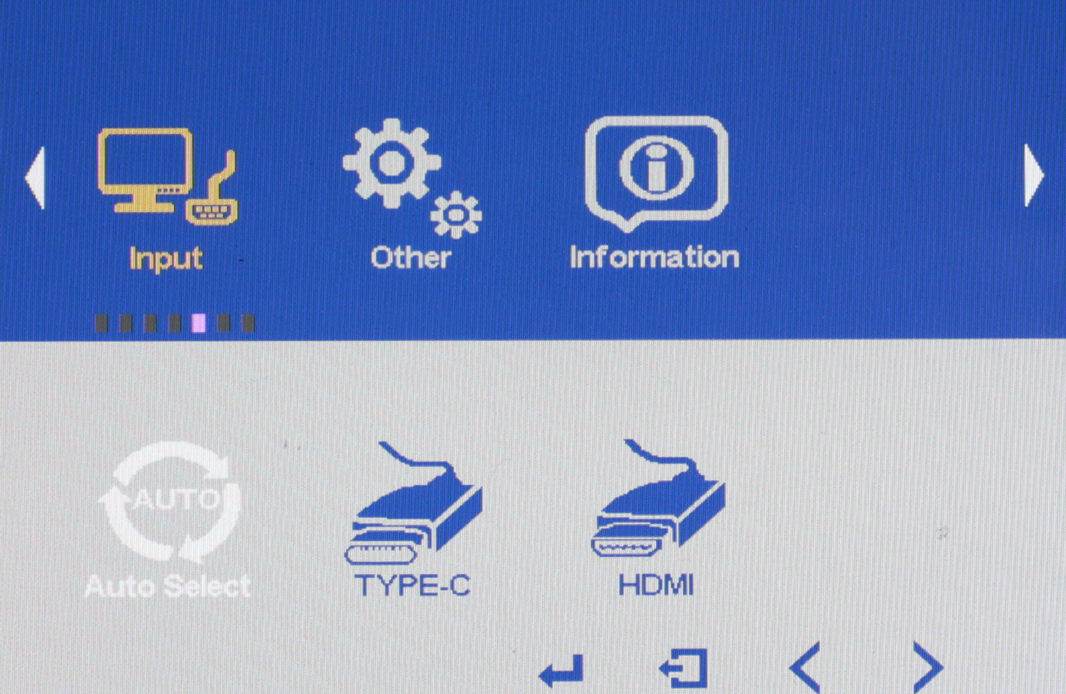

INPUT OPTIONS

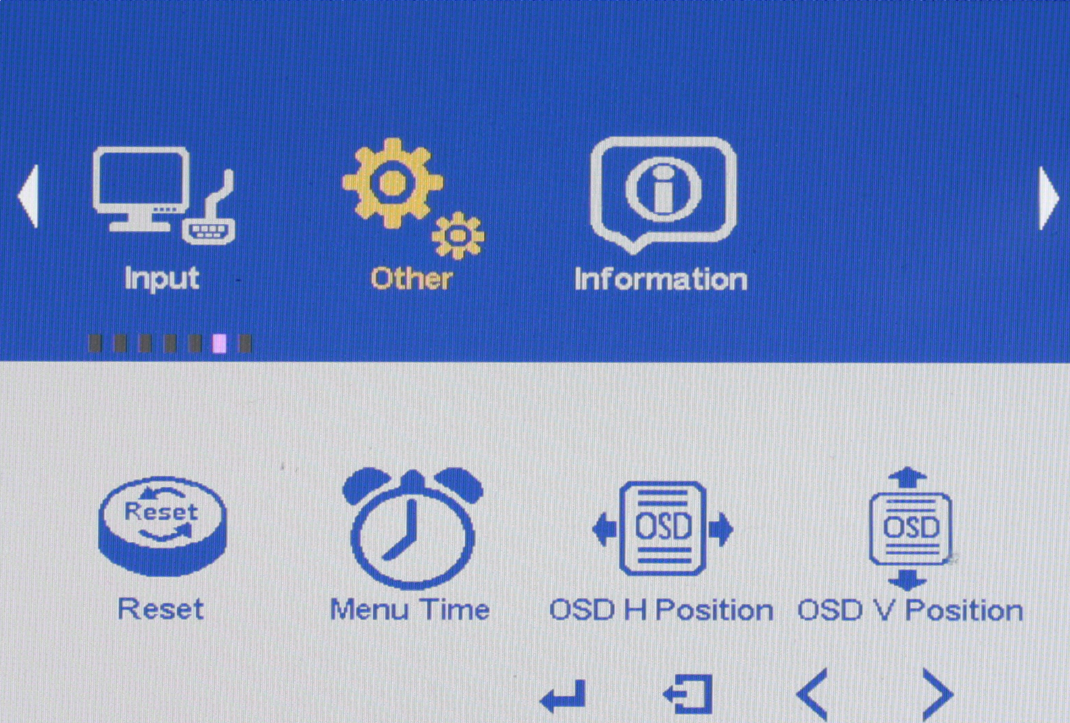

OTHER OPTIONS

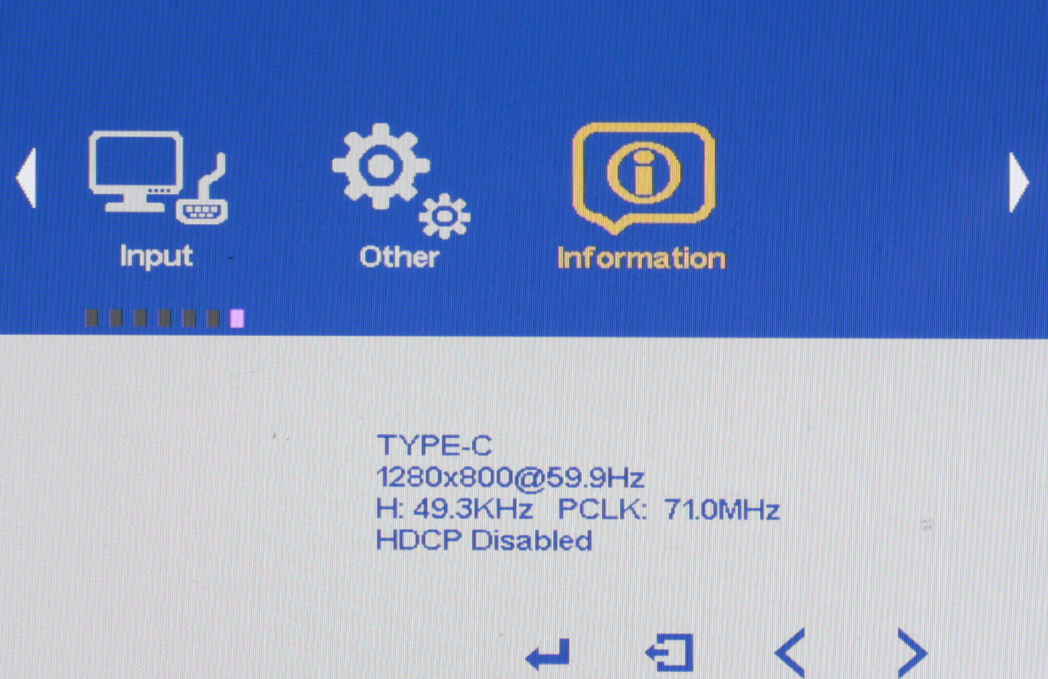

INFORMATION
